Chain mulchers CM

These Heavy-Duty chain mulchers is intended for cutting bushes, branches, and grass on the side of the fields and roads.

Gallery

Chain mulchers CM

Features

Kettniiduk-CM-1700-heavy-duty

Heavy-Duty (CM-1700)

Powerful and robust construction with high-quality components is engineered to handle challenging tasks.

Kettniiduk-CM-1700-Hardox-in-my-body

Hardox® in my body

The working surfaces of the mulcher head and support skis are made of wear-resistant Hardox® 500 Tuf steel.

Kettniiduk-CM-1700-rõhuakud

Hydraulic accumulators (CM-1700)

Pressure accumulators allow the mulcher head to follow the uneven ground.

Kettniiduk-CM-1700-bondioli-ja-pavesi

Bondioli & Pavesi

High-quality Bondioli & Pavesi gearboxes and shafts are specially designed and tested for this device, making it durable and reliable.

Kettniiduk-CM-1700-vedruleevendi

Spring damper

The robust spring damper helps to protect the mulcher and the tractor when encountering obstacles during work.

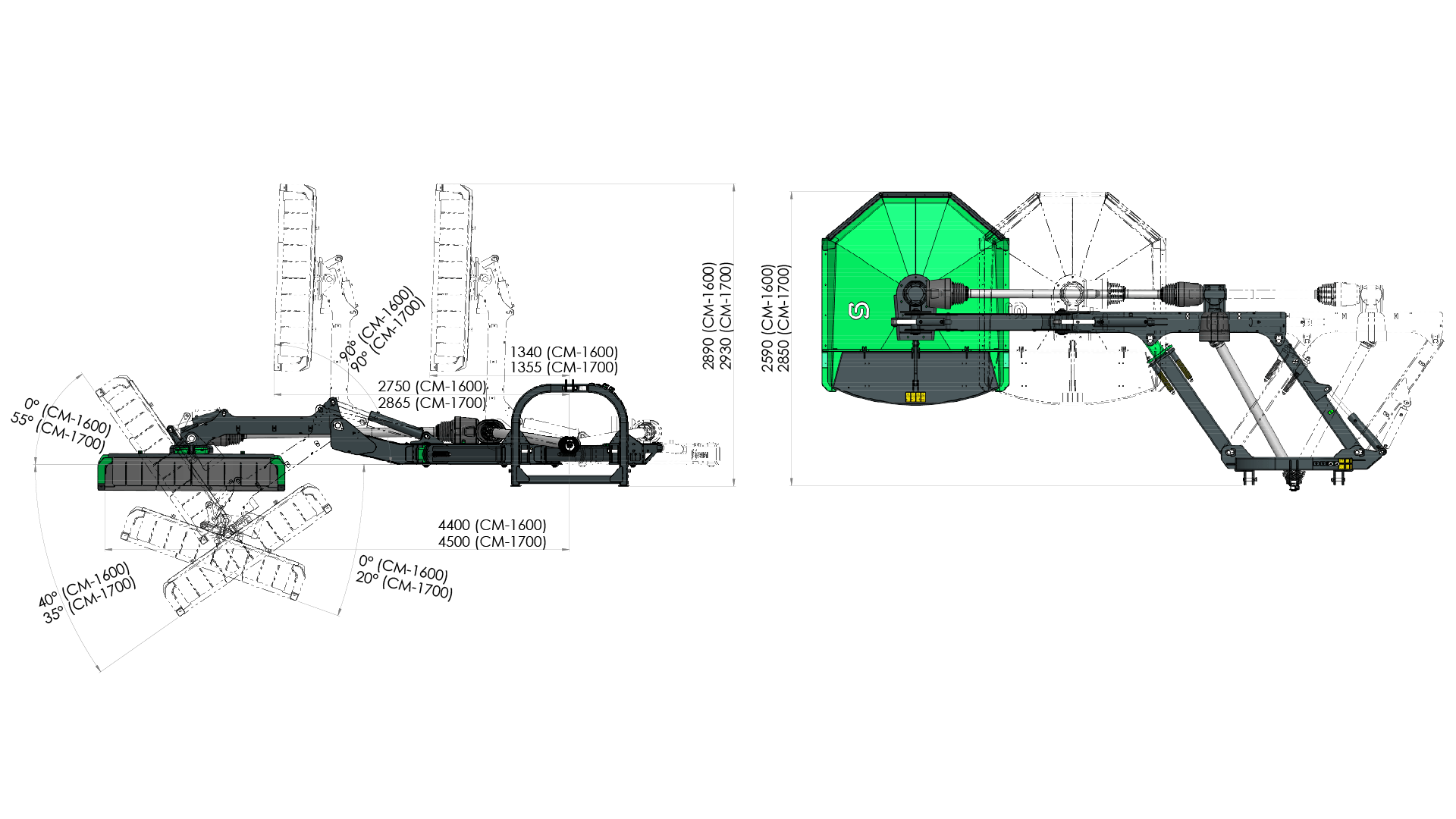

CM-1600 ja CM-1700 Range of motion horizontal
CM-1600 ja CM-1700 Range of motion horizontal
Product code
497.000
Working width (mm)
1600
Reach from the centre of the tractor (min.-max.) (mm)
3000-4400 (1400 sideshift)
Head movement
±7° float
Weight (kg)
ca. 770
PTO (rpm)
540
Chain (mm)
13
Oil pressure (max.) (bar)
200
1/2” couplings
2 pairs
Rec. tractor weight (t)
Starting from 3,5
Rec. tractor power (hp)
Over 90
Standard equipment
Spring dampers, hydraulic side shift, Hardox® support skis, manual hatch
3P hitch
3P (cat.2)
Material
Made from SSAB steel
Additional equipment
Product code
Description
439.915
Hydraulic set for the hatch
497.700
Cutting blades with blade holder
439.015
10 mm chains
50.79.000
Chain mulcher stand
Product code
439.000
Working width (mm)
1700
Reach from the centre of the tractor (min.-max.) (mm)
3000-4500 (1500 sideshift)
Head movement
Hydraulic tilt
Weight (kg)
ca. 1100
PTO (rpm)
540
Chain (mm)
13
Oil pressure (max.) (bar)
200
1/2” couplings
The fully equipped machine has 4 pairs + return flow
Rec. tractor weight (t)
Starting from 4
Rec. tractor power (hp)
Over 100
Standard equipment
Spring dampers, protection valve (diverter valve), hydraulic side shift, hydraulic tilt, hydraulic hatch, Hardox® support skis
3P hitch
3P (cat.2)
Material
Made from SSAB steel
Additional equipment
Product code
Description
497.700
Cutting blades with blade holder
439.015
10 mm chains
50.39.000
Chain mulcher stand
