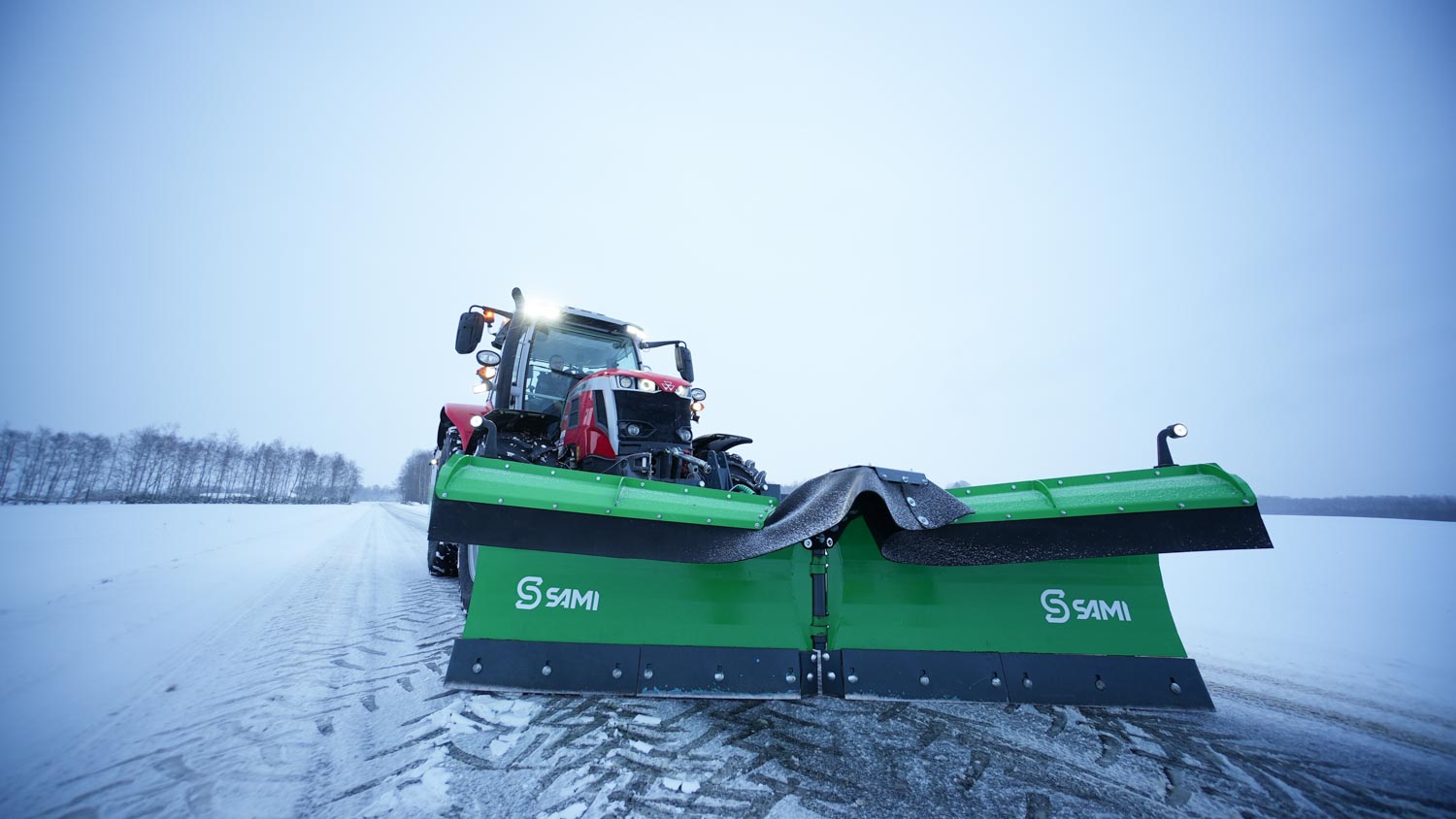

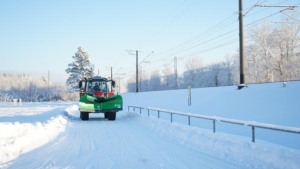

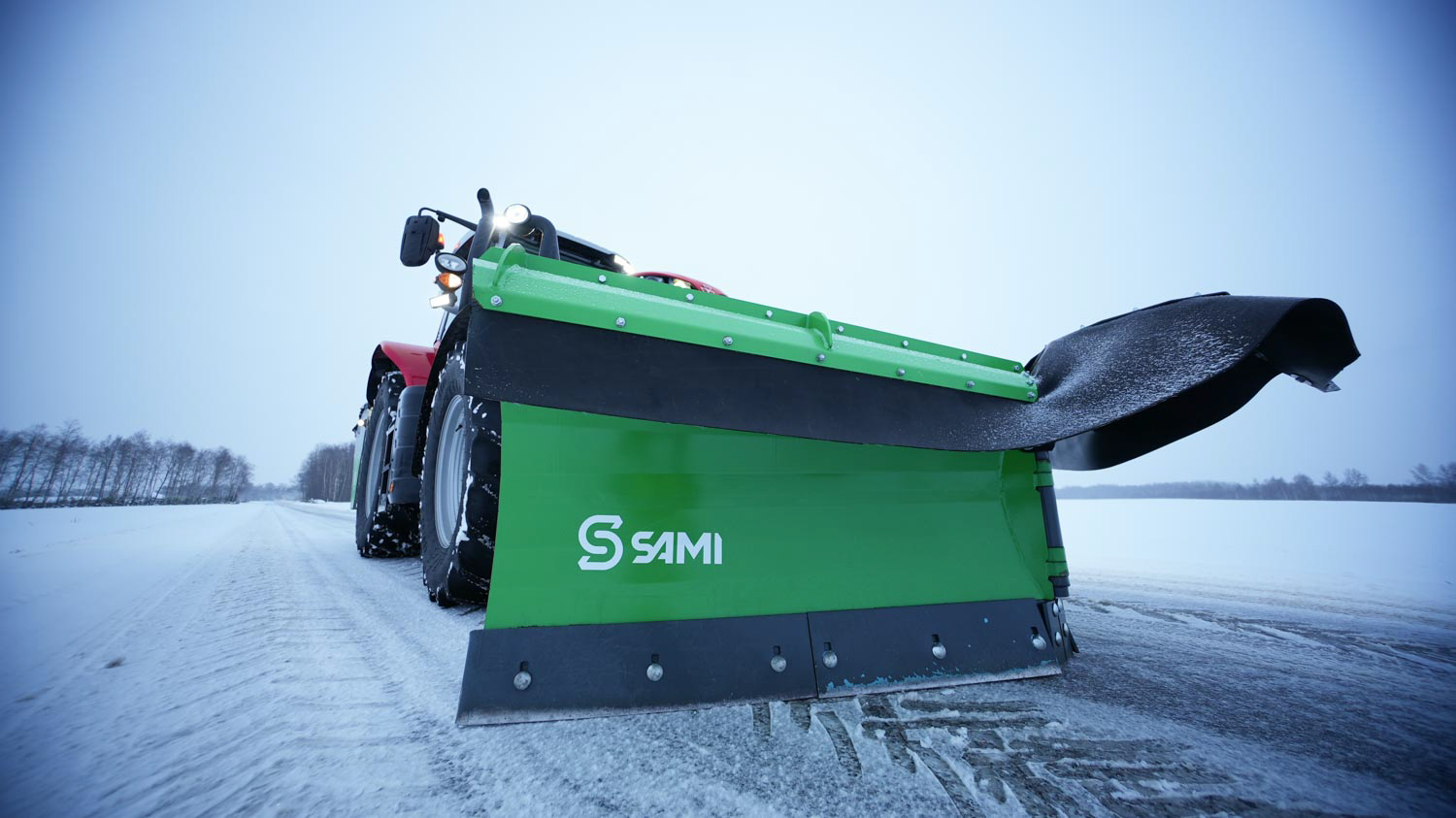

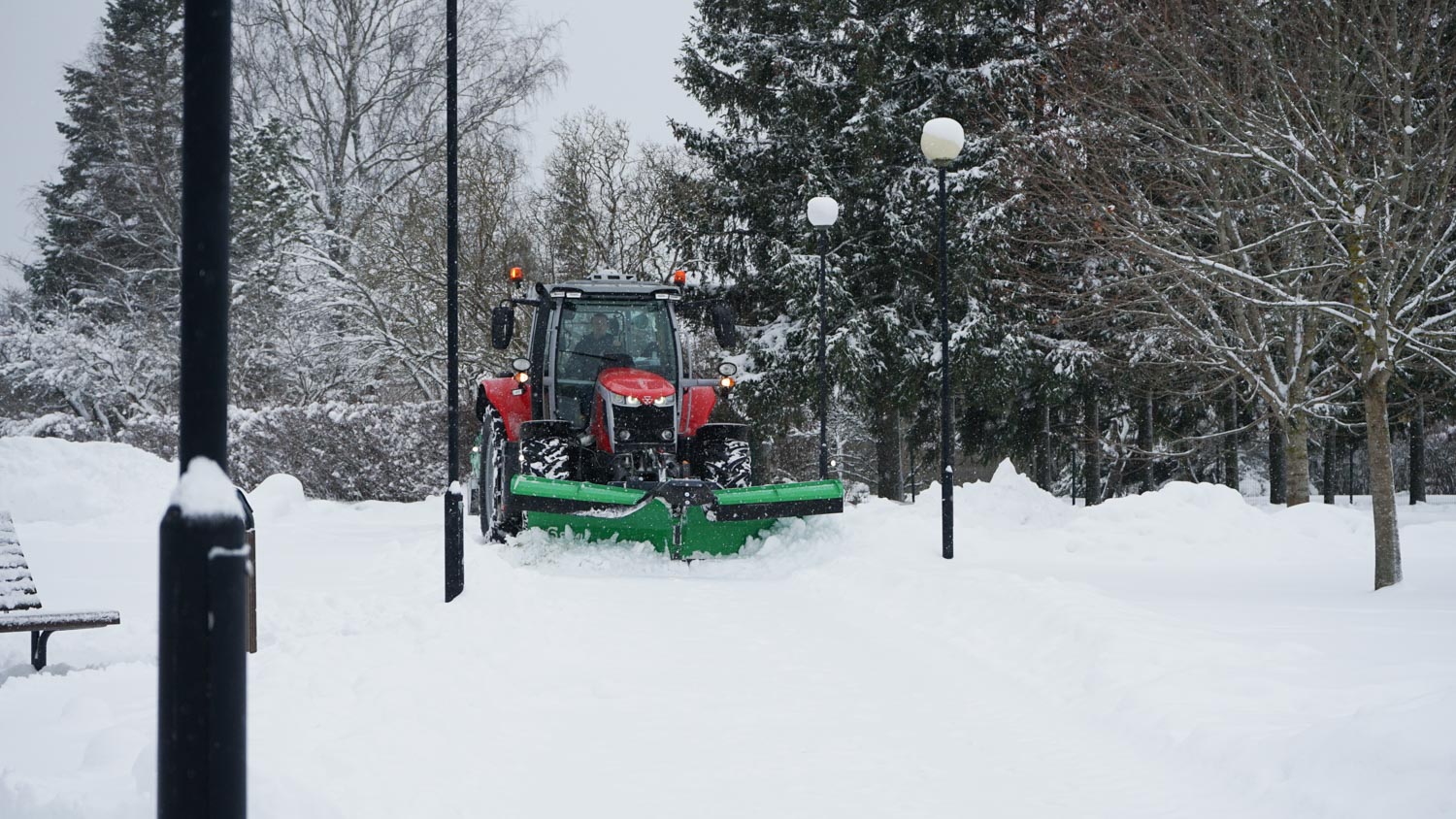

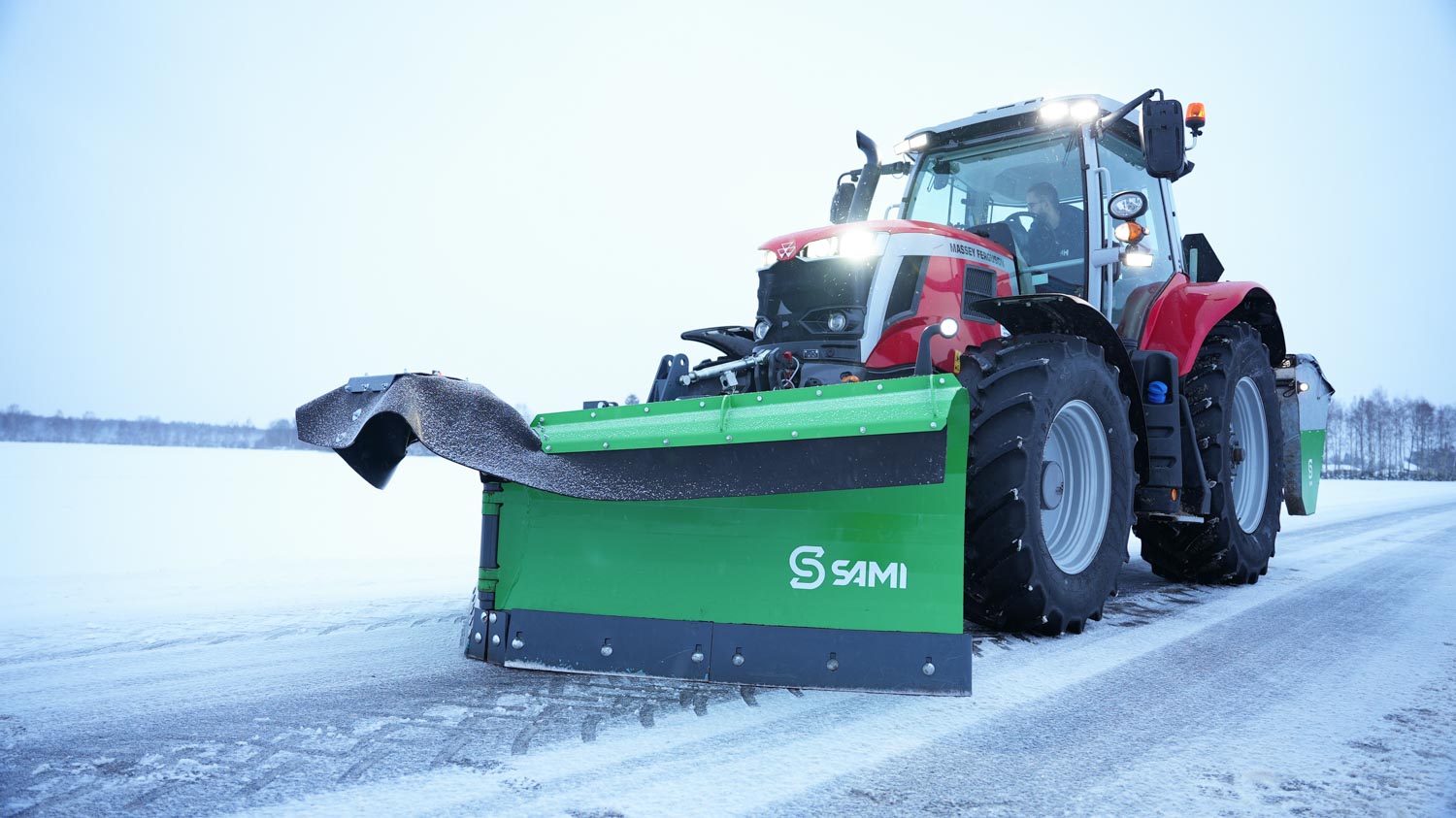

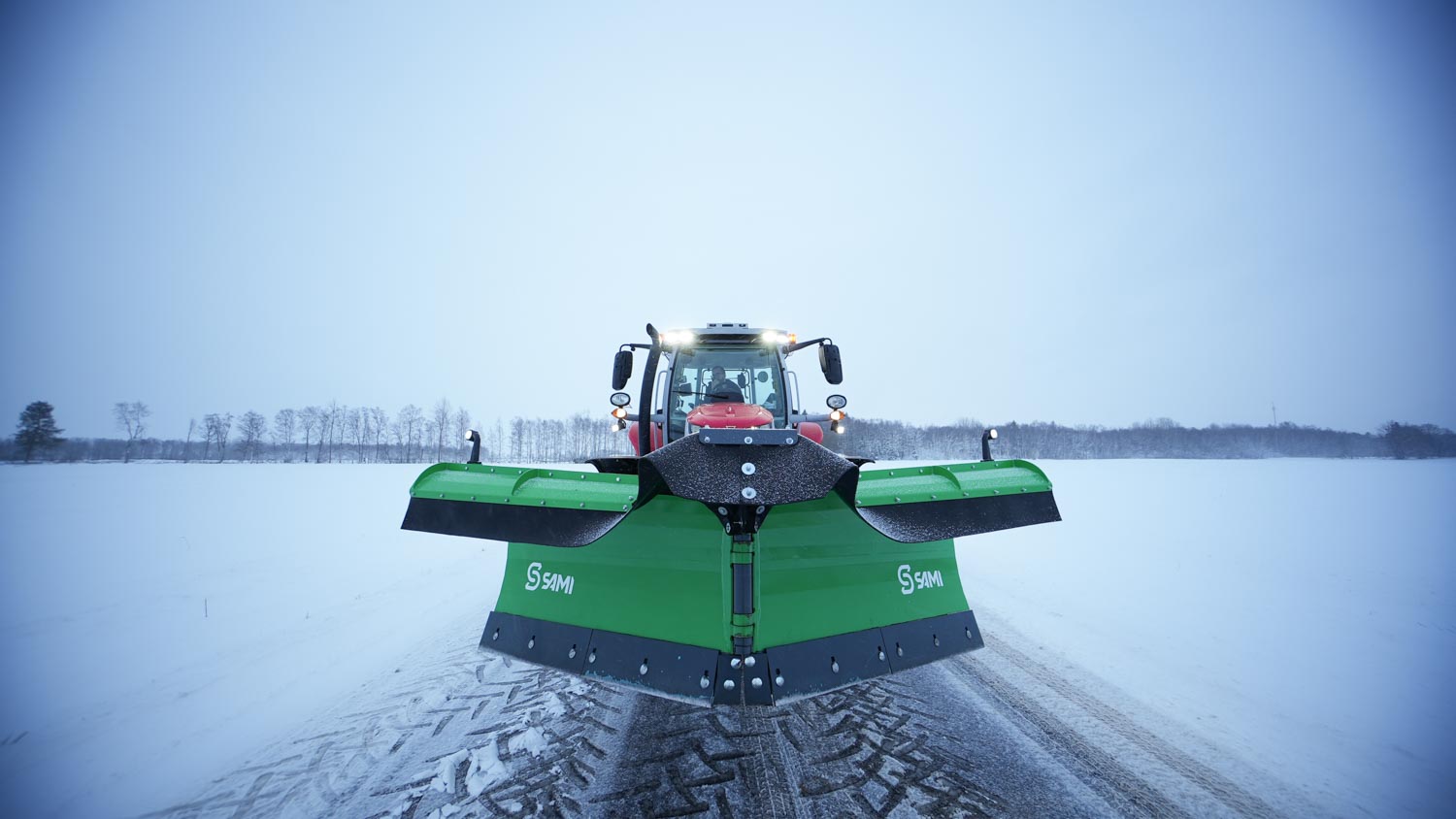

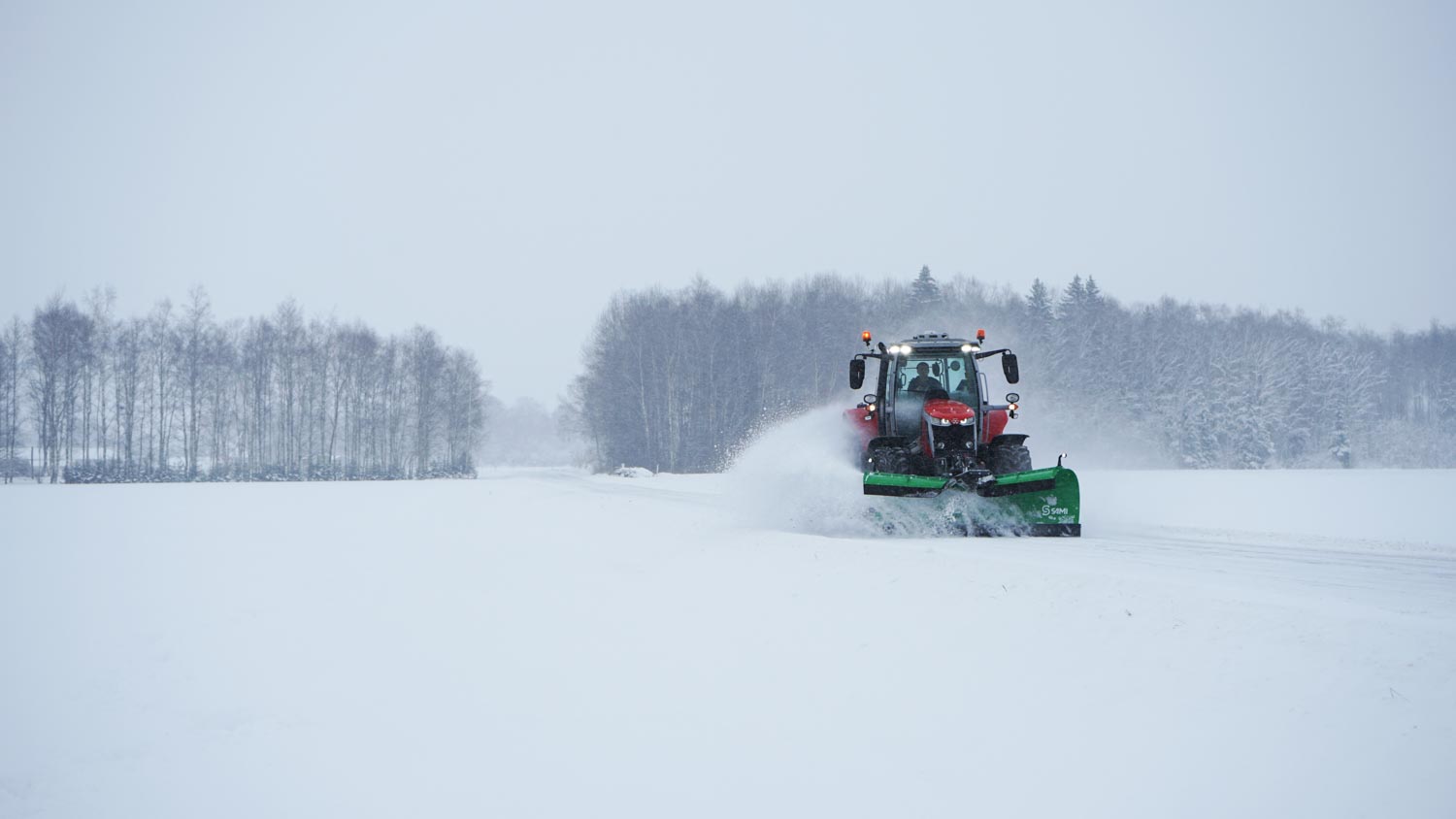

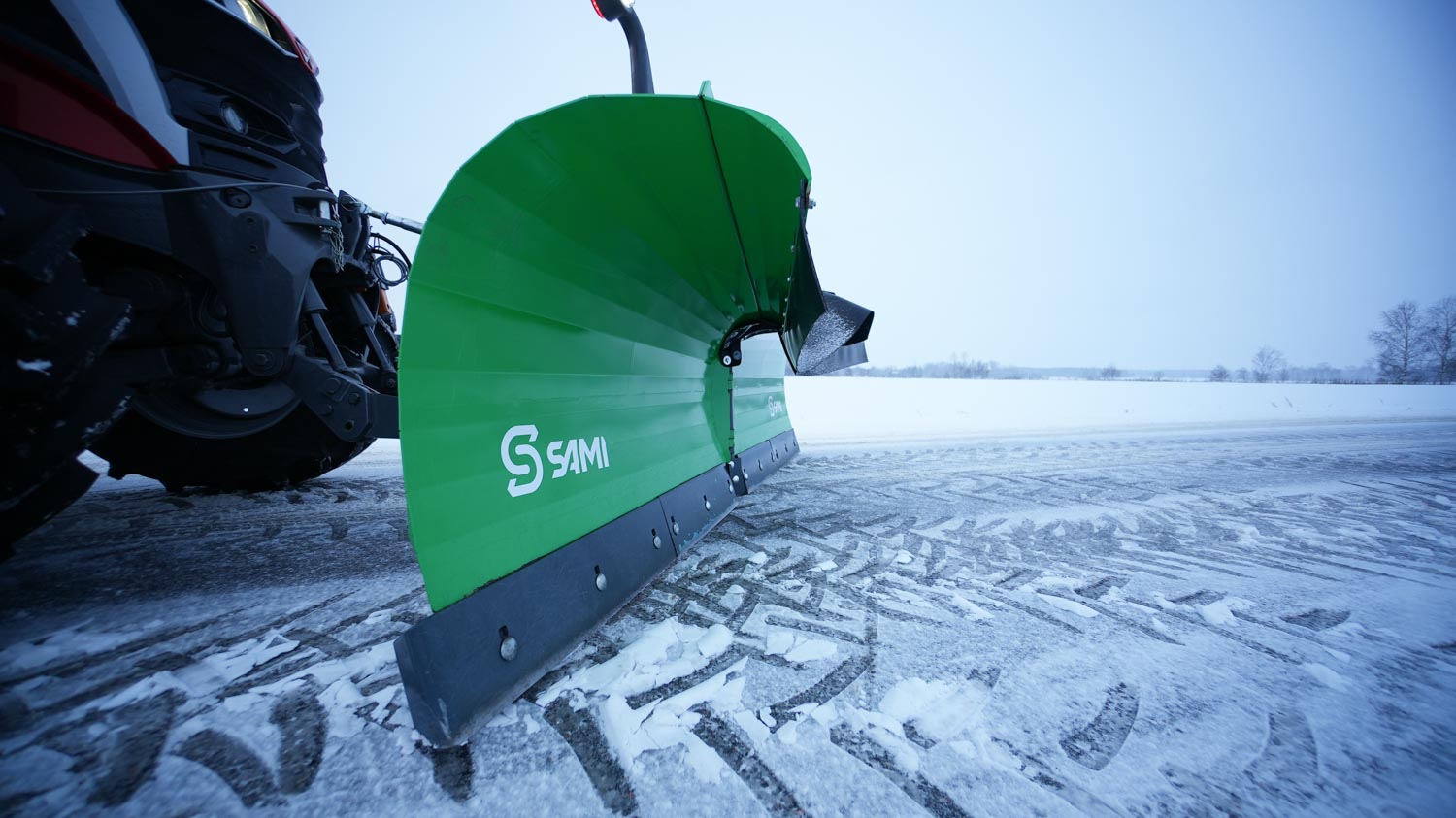

VM and VMA snow ploughs

VM and VMA snow ploughs meet the needs and requirements of professional road maintenance, ensuring high reliability.

Gallery

VM and VMA snow ploughs

Features

Hydraulic valve

Standard equipment includes a electrically controlled hydraulic valve that allows diagonal or separate moving of the wings.

Pressure accumulator

Pressure accumulator helps to protect the plough wings in case of impact.

Olofsfors

Olofsfors changeable blades are designed to be reversible, doubling their lifespan.

Olofsfors support skis

Olofsfors support skis protect the blades from wear, ensuring greater reliability.

Spring mechanism

Cleaner snow removal result is achieved by the blades spring mechanism which ensures the safety of the plough when crossing an obstacle.

Floating system

Plough follows the slope of the ground thanks to the floating frame system, ensuring better cleaning results.

Working width (min. - max.) (mm)
2120 - 2585
Height (mm)
979 - 1150
Depth (mm)
1075
Weight (kg)
490
Turning angle of wings (°)
±35
Blade angle (°)
0
1/2” couplings
1 pair
Rec. tractor weight (t)
2,5 - 4
Rec. tractor power (hp)
80 - 120
Standard equipment
12 V coil, hydraulic control, pressure accumulator, spring mechanism, Olofsfors blades, Bruxite support skis, LED lights
Additional equipment
24 V coil, rubber blades, net blades, 4 quick connection option, support wheels
Fastenings
All the most common fastenings
Material
Made from SSAB steel
Working width (min. - max.) (mm)
2365 - 2888
Height (mm)
979 -1150
Depth (mm)
1110
Weight (kg)
540
Turning angle of wings (°)
±35
Blade angle (°)
0
1/2” couplings
1 pair
Rec. tractor weight (t)
3 - 4,5
Rec. tractor power (hp)
80 - 150
Standard equipment
12 V coil, hydraulic control, pressure accumulator, spring mechanism, Olofsfors blades, Bruxite support skis, LED lights
Additional equipment
24 V coil, rubber blades, net blades, 4 quick connection option, support wheels
Fastenings
All the most common fastenings
Material
Made from SSAB steel
Working width (min. - max.) (mm)
2690 - 3280
Height (mm)
1000 - 1175
Depth (mm)
1135
Weight (kg)
575
Turning angle of wings (°)
±35
Blade angle (°)
0
1/2” couplings
1 pair
Rec. tractor weight (t)
5 - 6,5
Rec. tractor power (hp)
100 - 180
Standard equipment
12 V coil, hydraulic control, pressure accumulator, spring mechanism, Olofsfors blades, Bruxite support skis, LED lights
Additional equipment
24 V coil, rubber blades, net blades, 4 quick connection option, support wheels
Fastenings
All the most common fastenings
Material
Made from SSAB steel
Working width (min. - max.) (mm)
2730 - 3250
Height (mm)
985 - 1159
Depth (mm)
1150
Weight (kg)
607
Turning angle of wings (°)
±35
Blade angle (°)
15
1/2” couplings
1 paar
Rec. tractor weight (t)
5 - 6,5
Rec. tractor power (hp)
100 - 180
Standard equipment
12 V coil, hydraulic control, pressure accumulator, spring mechanism, Olofsfors blades, Bruxite support skis, LED lights
Additional equipment
24 V coil, rubber blades, net blades, 4 quick connection option, support wheels
Fastenings
All the most common fastenings
Material
Made from SSAB steel
