VL-compact snow ploughs

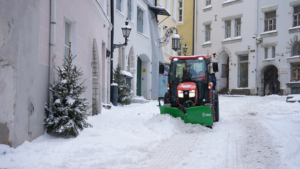

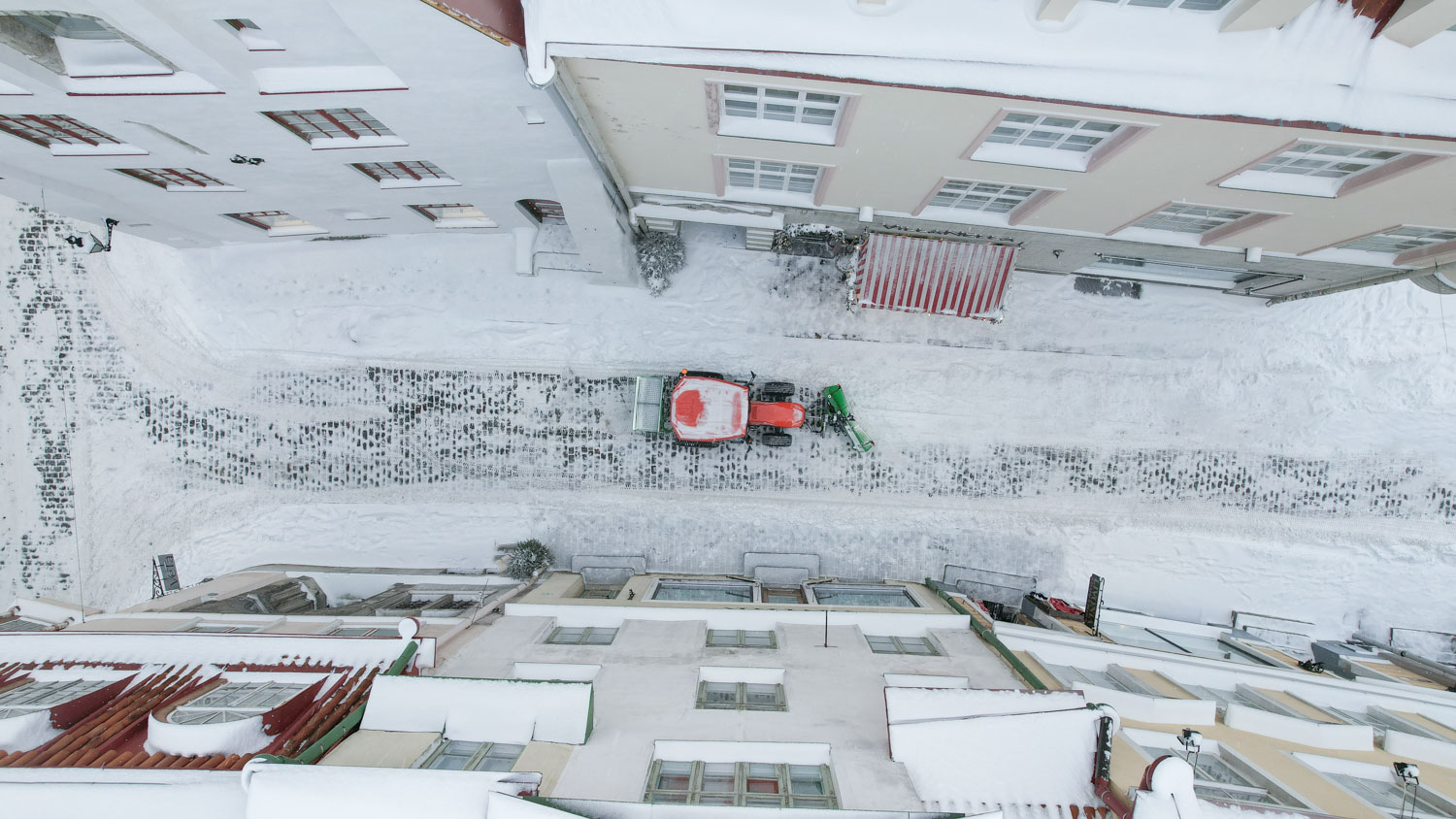

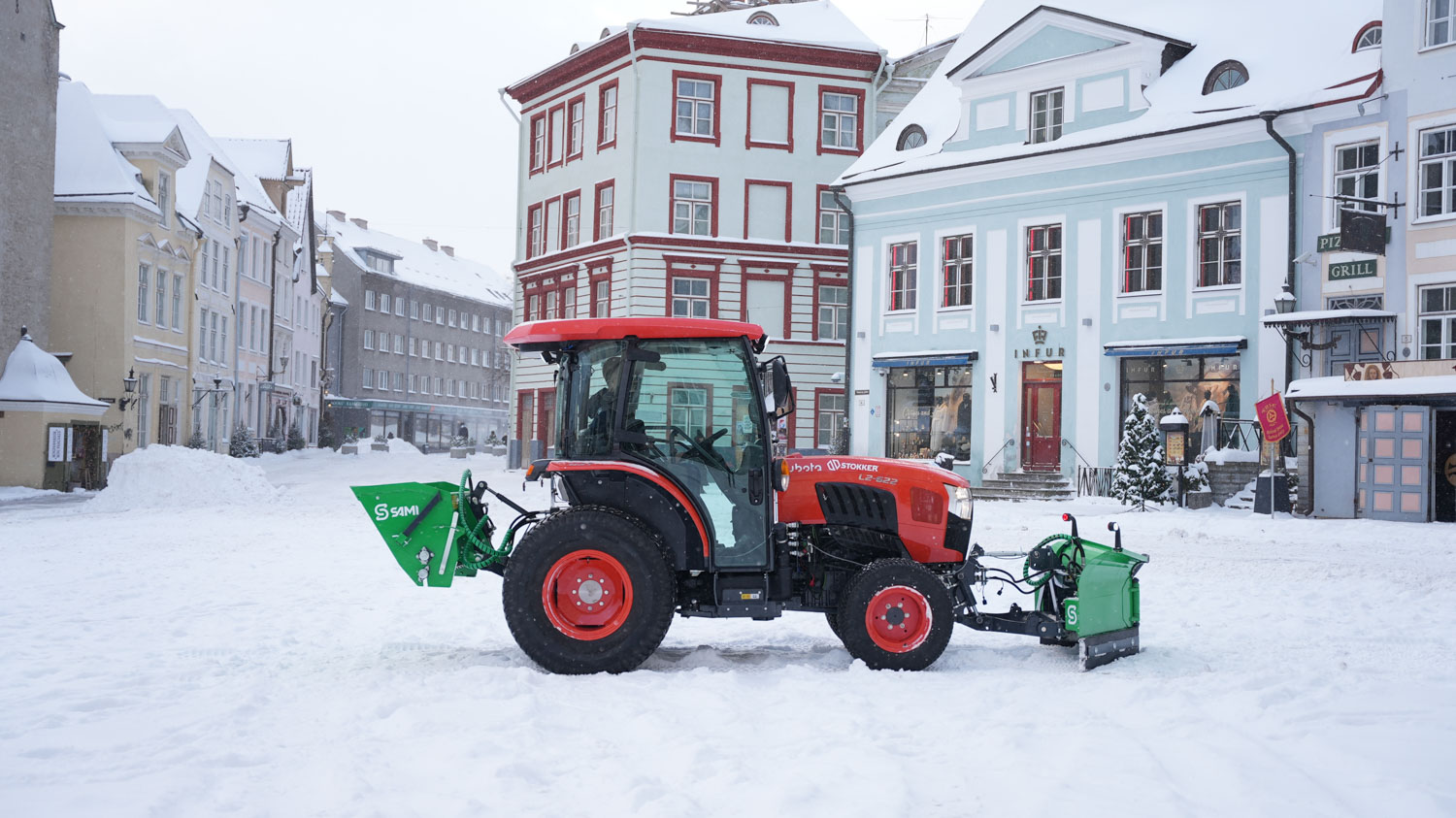

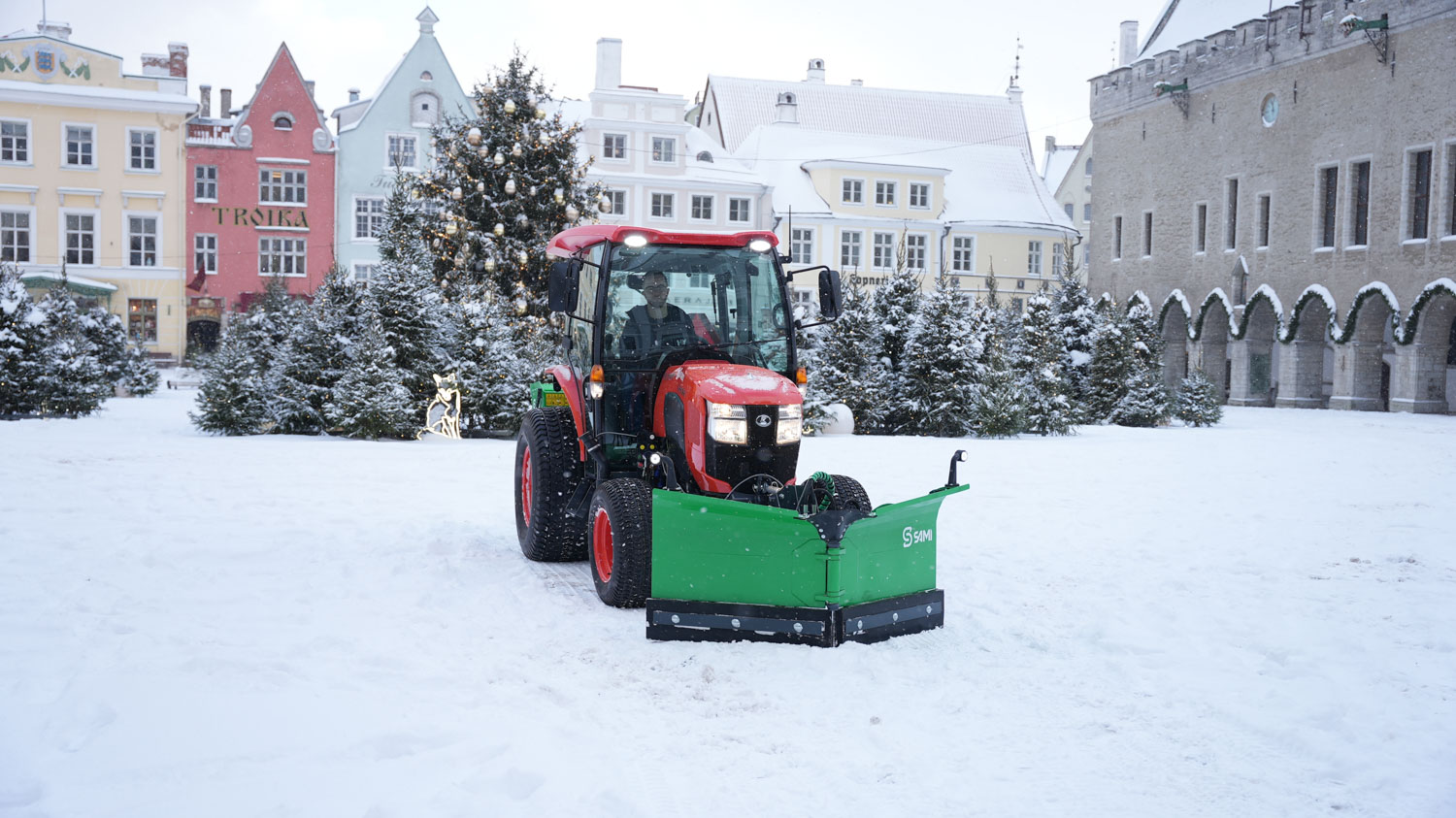

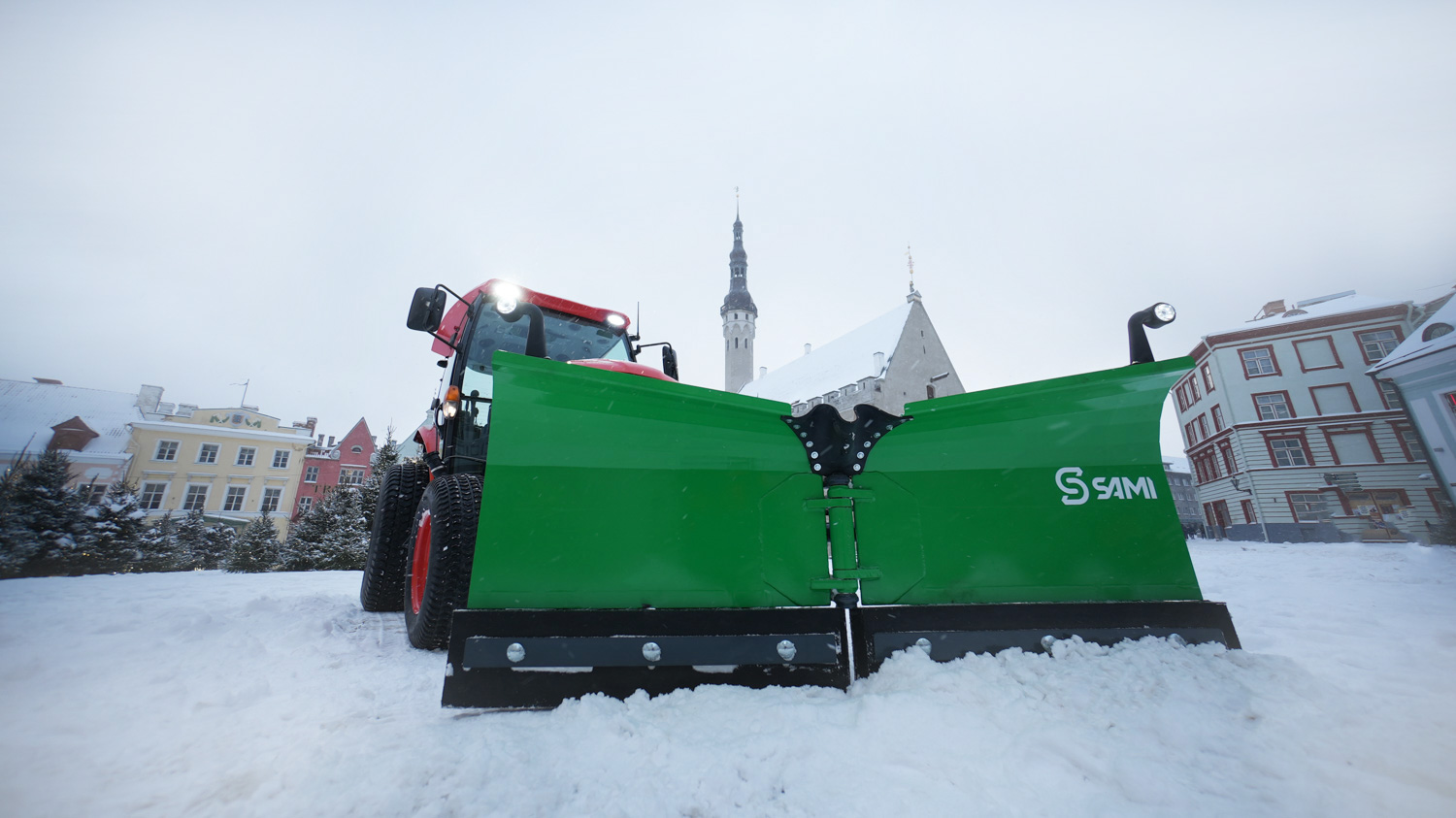

VL-compact series snow ploughs are designed for snow removal primarily on sidewalks but can also handle smaller roads.

Gallery

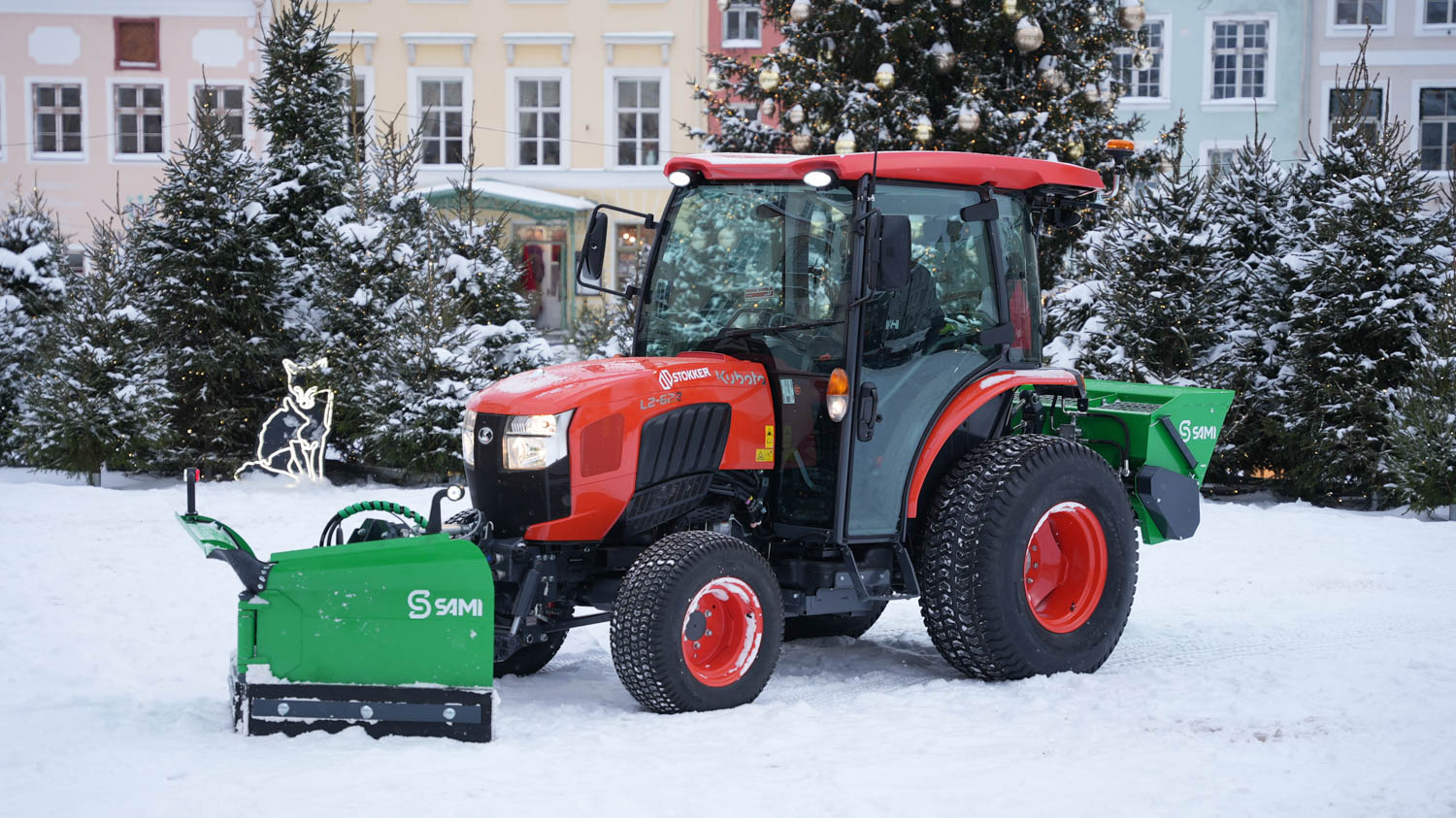

VL-compact snow ploughs

Features

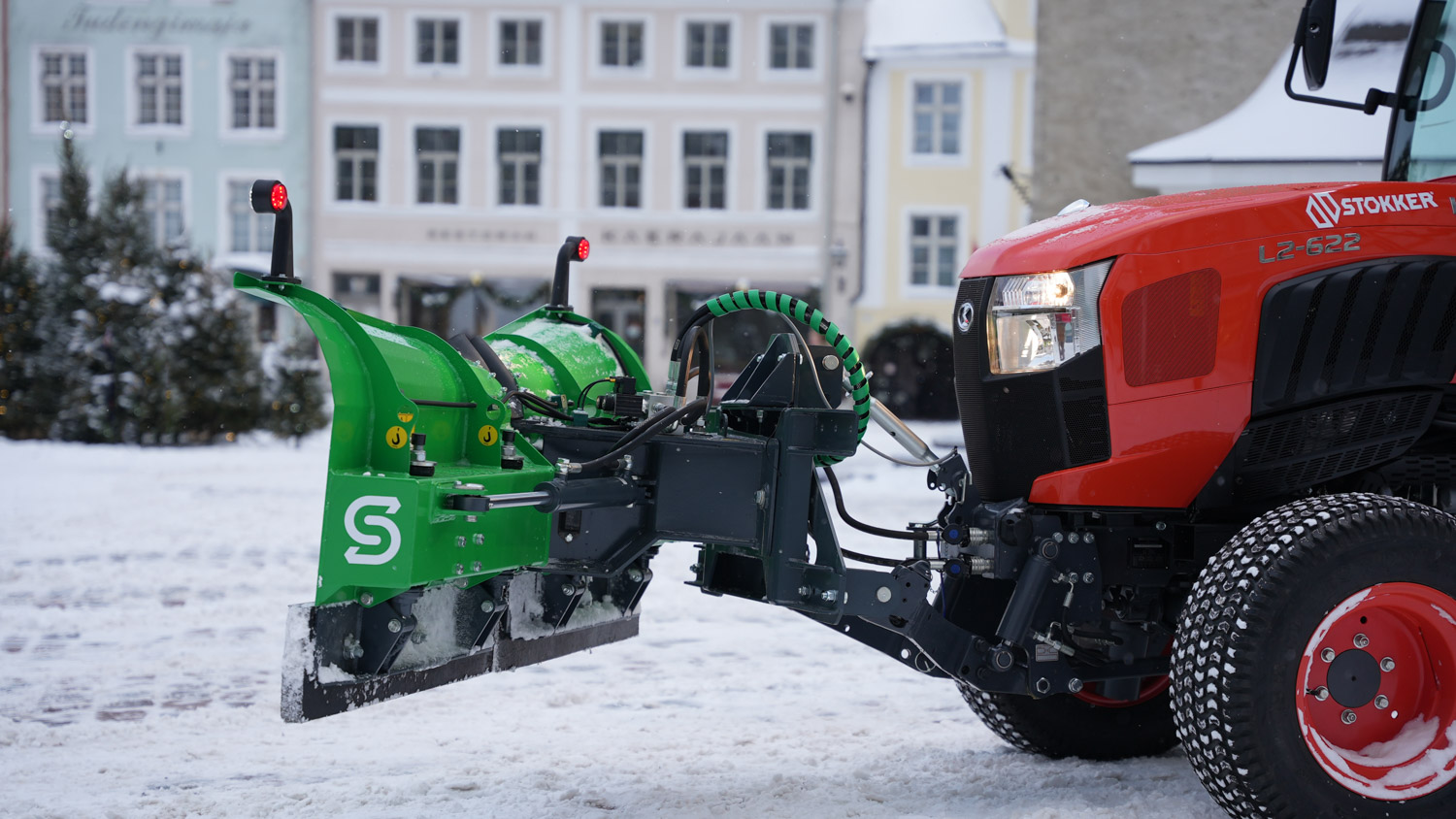

Floating system

Plough follows the slope of the ground thanks to the floating frame system.

Spring suspension

Spring loaded blades help to ensure the safety of the plough when crossing an obstacle and cleaner snow removal result.

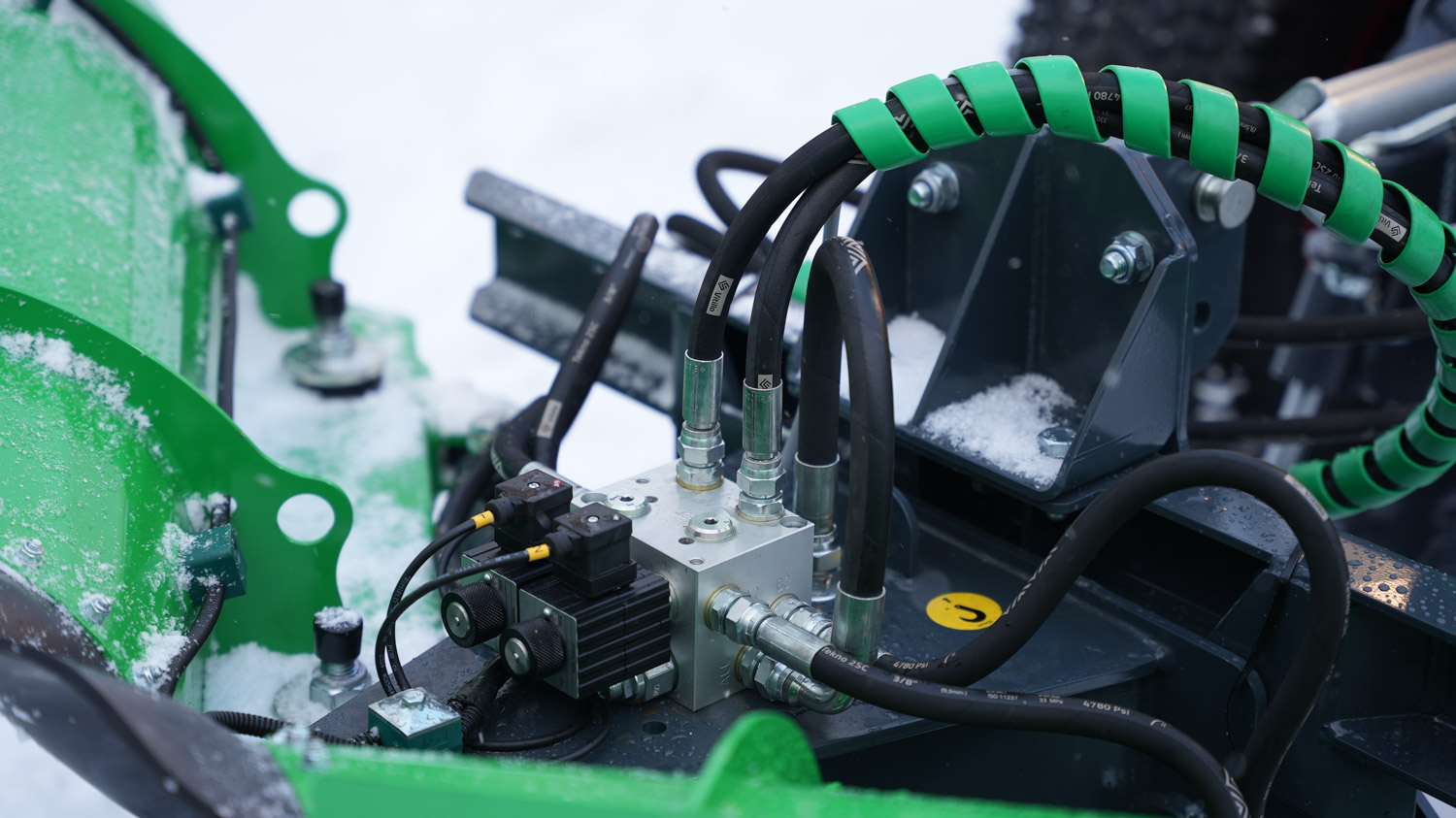

Hydraulic valve

Electrically controlled hydraulic valve allows diagonal or separate moving of the wings.

Pressure accumulator

Pressure accumulator helps to protect the plough wings in case of an impact.

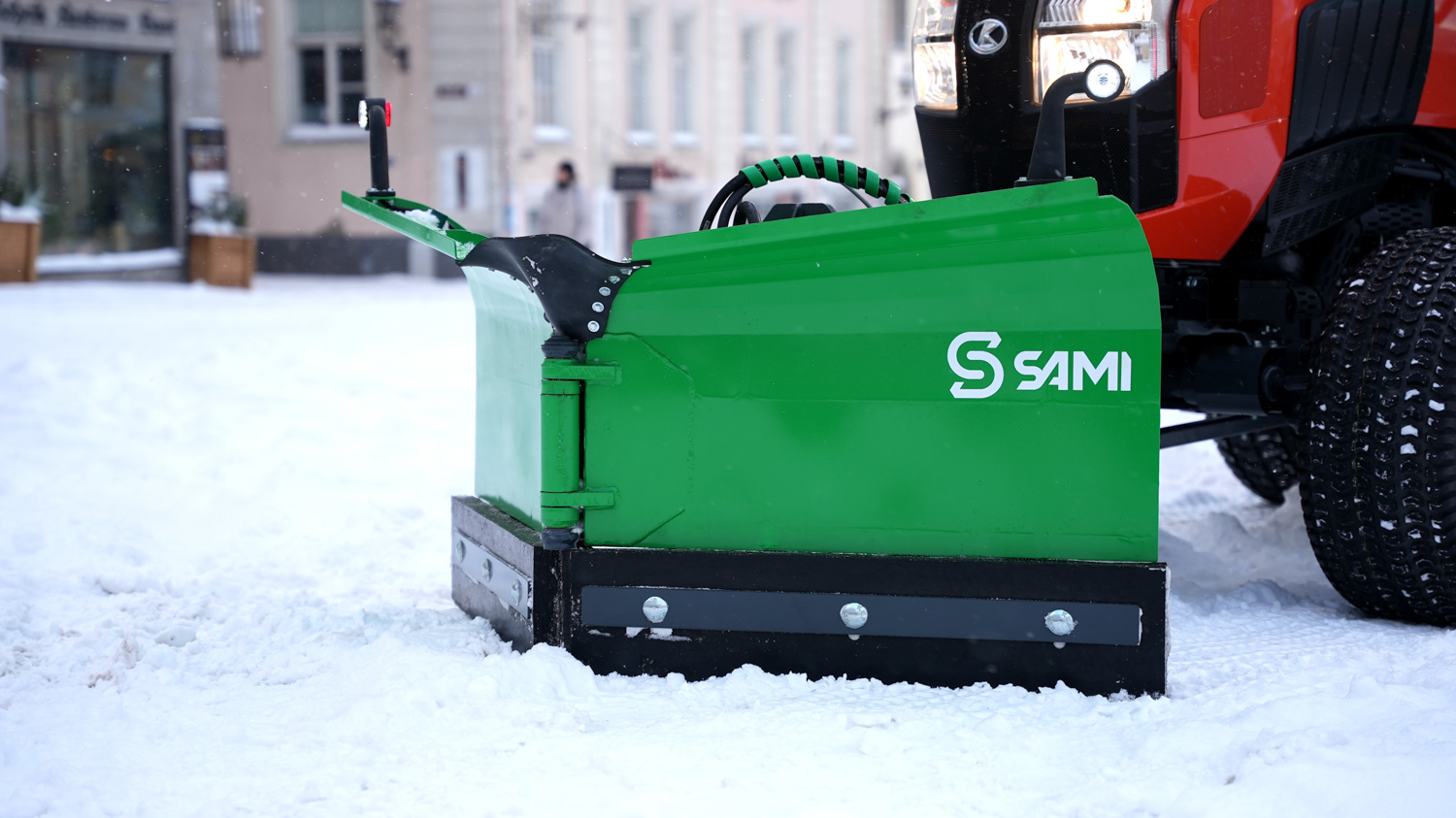

Olofsfors

Olofsfors replaceable blades are designed to be reversible, doubling their lifespan.

Product code
485.000.HS1
Working width (min. - max.) (mm)
1340 - 1690
Height (mm)
770 / 940
Depth (mm)
810
Blade angle (°)
0
Turning angle of wings (°)
±35
Weight (kg)
215
Oil pressure (max.) (bar)
200
1/2” couplings
1 or 2 pairs
Rec. tractor weight (t)
1,5 - 3,5
Rec. tractor power (hp)
30 - 80
Standard equipment
Hydraulic control valve and pressure accumulator, spring suspension, Olofsfors blades, hydraulic turning angle
Fastenings
All the most common fastenings
Material
Made from SSAB steel
Additional equipment
Product code
Description
11.910
Hydraulic onversion set for V-plough
486.800
LED lights set for VL-plough
486.700
Support ski for VL-plough, 1pc
485.1020
Net blades set
485.1030
Rubber blades set
Product code
486.000.HS1
Working width (min. - max.) (mm)
1610 - 1940
Height (mm)
770 / 940
Depth (mm)
810
Blade angle (°)
0
Turning angle of wings (°)
±35
Weight (kg)
220
Oil pressure (max.) (bar)
200
1/2” couplings
1 or 2 pairs
Rec. tractor weight (t)
1,5 - 3,5
Rec. tractor power (hp)
30 - 80
Standard equipment
Hydraulic control valve and pressure accumulator, spring suspension, Olofsfors blades, hydraulic turning angle
Fastenings
All the most common fastenings
Material
Made from SSAB steel
Additional equipment
Product code
Description
11.910
Hydraulic onversion set for V-plough
486.800
LED lights set for VL-plough
486.700
Support ski for VL-plough, 1pc
486.1020
Net blades set
486.1030
Rubber blades set
Product code
487.000.HS1
Working width (min. - max.) (mm)
1750 - 2120
Height (mm)
770 / 940
Depth (mm)
810
Blade angle (°)
0
Turning angle of wings (°)
±35
Weight (kg)
225
Oil pressure (max.) (bar)
200
1/2” couplings
1 or 2 pairs
Rec. tractor weight (t)
1,5 - 3,5
Rec. tractor power (hp)
30 - 80
Standard equipment
Hydraulic control valve and pressure accumulator, spring suspension, Olofsfors blades, hydraulic turning angle
Fastenings
All the most common fastenings
Material
Made from SSAB steel
Additional equipment
Product code
Description
11.910
Hydraulic onversion set for V-plough
486.800
LED lights set for VL-plough
486.700
Support ski for VL-plough, 1pc
487.1020
Net blades set
487.1030
Rubber blades set

Resources

VL-compact snowploughs
